Five Major Functions of Rotary Kiln in Cement Calcination

Date:11/12/2014 07:18:10

Cement clinker production rotary kiln can be divided into wet, semi dry, dry and new dry process rotary kiln. But the basic process of cement clinker calcination is the same, namely the process of clinker formation occurred in the physical and chemical reaction required conditions are the same, but it has adopted different modes of production. Rotary kiln cement boil combustion equipment of mineral materials as the final form of the clinker always bears the task in the process of cement production alone. The rotary kiln has the following five major functions:

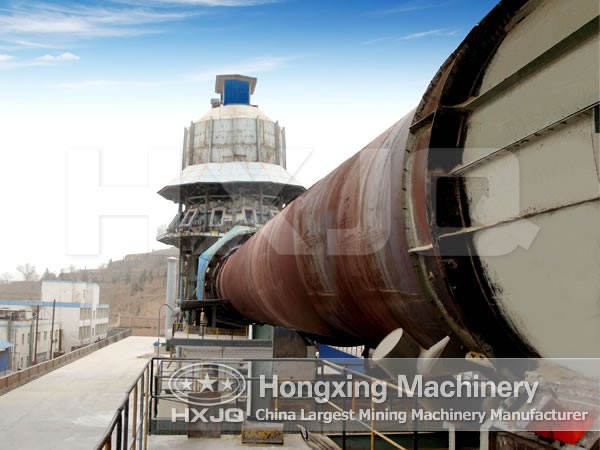

(1) Rotary kiln is a tilted rotating cylinder (the general inclination is 3% to 5%). The raw material is composed of a cylinder high-end join (i.e. kiln tail), with the continuous rotary motion kiln, material will gradually move from the high-end to low-end (i.e. kiln), so the rotary kiln is a conveying device.

(2) Rotary kiln is a kind of combustion equipment. Pulverized coal mill from the kiln head blower to the kiln spray, combustion heat generated by radiation, convection and conduction three basic modes of heat transfer, so the heat will be transferred to the materials. As the fuel burning equipment, rotary kiln has broad space and thermal field, which can provide enough air. The excellent combustion device ensures the sufficient combustion of fuel, so as to provide the necessary heat for the clinker burning.

(3) Rotary kiln has heat exchange function. With the uniform temperature distribution in rotary kiln cement clinker formation, it can meet the requirements of all stages in the process of heat transfer, particularly the minerals generation requirements.

(4) Rotary kiln has the function of chemical reaction. The clinker in the process of formation, it happens a series of physical and chemical reaction. The rotary theft can meet different minerals on the formation of heat and temperature requirements, and it can also satisfy the requirements, which is the ideal chemical reactor.

(5) Rotary kiln has the waste degradation function. Because the rotary kiln has high temperature and airflow stagnation and long time thermal field, degradable chemical, pharmaceutical and other industries discharge of toxic, hazardous waste. At the same time, it can be one of the most heavily element curing in clinker. The generation of stable salts can avoid the secondary pollution prone to furnace burning garbage.
