High Pressure Micropowder Mill

Supply Ability: ≤15-≤25mm

Production capacity: 0.2-21t

Feature: Small investment, high yield, size large

Features

Applications

High strength grinding mill is suitable for crushing barite, limestone, ceramics, slag, etc. It is appropriate for crushing more than 280 kinds of nonflammable and nonexplosive materials with Moh's hardness not more than the magnitude of 9.3, humidity under 6% in the industries of mining, metallurgy, chemical industry, building materials, and others. The granularity can be adjusted from 80-425 (with the finest being 1000 meshes). Through installing a special device, it can produce coarse powder with fineness of 30-80.

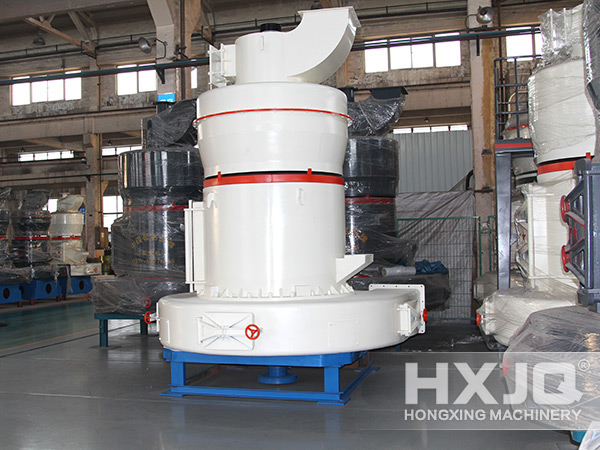

High Pressure Micropowder Mill

high Pressure Micropowder Mill

Technical Parameters of High Pressure Micro-powder Mill

Parameter Model	Micropowder93	Micropowder92	Micropowder87	Micropowder76	Micropowder66
Feeding size（mm）	≤25	≤25	≤20	≤20	≤15
Size of finished product（mm）	0.125-0.010	0.125-0.033	0.125-0.010	0.125-0.033	0.125-0.010
Shift output of different material fineness（t)	0.8-12	0.6-10	0.4-8	0.3-6	0.2-4
Rotate speed of pulverizing ring（r/min）	140	148	160	170	180
Diameter of pulverizing ring（mm）	1006	973	907.5	850	725
Diameter of pulverizing roller（mm）	300	300	270	250	210
Height of pulverizing roller（mm）	160	160	150	150	150
Main Motor(kw)	Y225M-8-30	Y225M-8-22	Y225M-8-22	Y225S-8-18.5	Y225M-8-15
Fan Motor	Y180M-2-22	Y180L-4-22	Y160L-4-18.5	Y160L-4-15	Y160L-4-11
Analyzer Motor	YCT180M-4A-4	YCT180M-4A-4	YCT180M-4A-4	YCT160-4B-3	YCT160-4B-3
