High Efficiency Concentrator

Charge Amount: 1.8-204.6t

Reference Power: 5.6-6250t/d

Application Range: Metallurgy, chemical industry, coal, nonmetal ore dressing, environment protection, etc

Features

Application

High efficiency concentrator is widely used in metallurgy, chemistry, coal mining, environment protection, non-metallic mineral processing lines, etc.

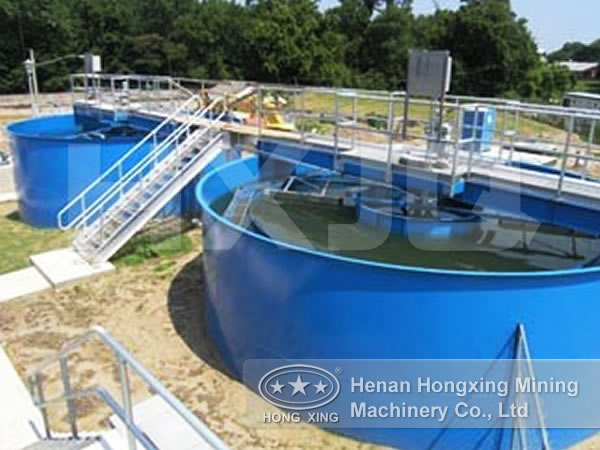

High-efficient Concentrator

Main Structural Characteristics

The concentrator consists of the body, transmission rake, driving device, steel bracket and cant board.

1) The body comprises the cylinder and cone. There is an overflow weir at the top and repairing platform on the roof.

2) Rake components: consisting of transmission shaft, rake, etc; mainly scraping the grout at the bottom to the discharging pipe.

3) Cant board components: the main factors to improve the speed of the depositing.

4) Brackets: as the supporter of the concentrator, it is made up of profile steels.

Technical Parameters of High Efficiency Concentrator

Specification		Concentration pond （m）		Deposit square(m²)	Harrow part			Motor		Processing capacity (t/d)
Model	Specification	Inner diameter	Depth	Pond degree	Method	Height（m）	Rotation time（min/r）	Driving	Lifting	Processing capacity (t/d)
NZS-1	Φ1.8m	1.8	1.8	2.54	Manual	0.16	2	Y90L-6 1.1KW	----	5.6
NZS-3	Φ3.6m	3.6	1.8	10.2	Manual	0.35	2.5	Y90L-6 1.1KW	----	22.4
NZS-6	Φ6m	6	3	28.3	Manual	0.2	3.7	Y90S-4 1.1KW	----	62
NZSF-6	Φ6m	6	3	28.3	Manual	----	3.7	Y90S-4 1.1KW	----	62
NZ-9	Φ9m	9	3	63.6	Auto	0.25	4.34	Y132S-6 3KW	XWD0.8-3 0.8KW	140
NZS-9	Φ9m	9	3	63.6	Manual	0.25	4.34	Y132S-6 3KW	----	140
NZS-12	Φ12m	12	3.5	113	Manual	0.25	5.28	JTC752A-44 5.2KW	----	250
NZ-15	Φ15m	15	4.4	176	Auto	0.4	10.4J	JTC752A-44 5.2KW	Y112M-6 2.2KW	350
NZ-20	Φ20m	20	4.4	314	Auto	0.4	10.4	Y100L1-4 5.2KW	Y112M-6 2.2KW	960
NZ-30	Φ30m	30	7.165	707	----	0.61	13.7	Y672A-44 5.2KW	YCJ132-S 1.5KW	----
NZS-45	Φ45m	45	4.633	1590	Manual	----	20	Y672A-44 5.2KW	YCJ160-S 2.2KW	515
NT-15	Φ15m	15	3.5	177	----	----	8.4	Y132M2-6 5.5KW	----	390
NQ-18	Φ18m	18	3.5	255	----	----	10	Y132M2-6 5.5KW	----	560
NQ-24	Φ24m	24	3.4	452	----	----	12.7	Y160M-6 7.5KW	----	1000
NQ-30	Φ30m	30	3.6	707		----	16	Y160M-6 7.5KW	----	1570
NJ-38	Φ38m	38	4.9	1134	----	----	10-25	JZT252-4 11KW	Y160M-6 7.5KW	1600
NT-45	Φ45m	45	5.05	1590	Auto	----	19.3	Y160L-6 11KW	----	2400
NTJ-53	Φ53m	53	5.07	2202	----	----	23.18	Y180L-6 15kw	----	6250
NT-100	Φ100m	100	5.65	7846	----	----	43	Y180L-6 15KW	----	3030
