Cement Mill

Supply Ability: 8 Set/Sets per Month

Production capacity: 6.5-135t/h

Port: Qingdao,Tianjin, Shanghai or others

Feature: Grading effect, Easy to install, Simple maintenance

Features

Introduction

The cement mill is key equipment for further crushing after the materials are primary crushed. It is widely used in cement industry, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal ore dressing and glass ceramics production industry for wet process or dry process grinding of all ores and other grindable materials. After arduous exploration and generalization in the long term design and production, we have developed serialized equipment of various specifications, which can fulfill different demands.

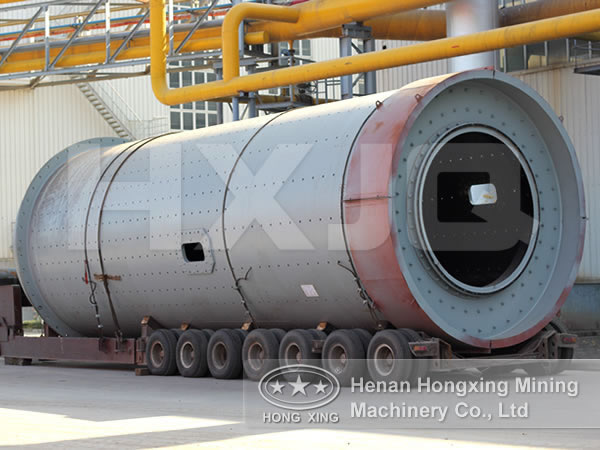

Cement Mill

Maintenance

This machine is a horizontal cylinder rotating device, including the cylinder, the grinding door, and lining board bolts. Ash leakage occurs frequently in the cylinder and the grinding door, and the cylinder can be curved. Due to the low temperature of the cement, the curve doesn't happen so often, but the leakage is very common. So we advise that when the machine stops working, technicians should be arranged to fix the cylinder and the grinding door.

Working Principle

The inner cylinder adopts the new type sizing liners and standard stepped liners, increasing the grinding surface area and bettering the grading effect. The later maintenance and change become easier. The new type partition structure adopts the adjustable and fixed spreading boards with easy installation and maintenance. The grinding medium, attached onto the lining board in the inner cylinder, rotates together with the cylinder, which is driven by the transmission device, and then falls under gravity. Meanwhile, the grinding medium crushes the materials with its circular movement of rising and dropping. The sliding and rolling produced by the movement grind the materials fine under the effect of grinding among the grinding medium, the lining board, and the materials.

Technical Parameters

(Dia.×Length) (m)	Speed (r/min)	Feeding Size (mm)	Griding Media Loading (t)	Main Motor (KW)	Main Reducer
Φ2.2×7.0	21.5	<25	32	380	ZD70
Φ2.2×9.0	21.5	<25	44	480	ZD70
Φ2.2×9.5	21.5	<25	45	480	ZD70
Φ2.2×11	21.5	<25	58	630	ZD80
Φ2.2×13	21.5	<25	58	630	ZD80
Φ2.4x10	20.3	<25	55	630	ZD80
Φ2.4×11	20.3	<25	62	710	MBY710
Φ2.4×12	20.3	<25	68	800	MBY710
Φ2.4×13	20.3	<25	68	800	MBY710
Φ2.6×11	19.7	<25	68	800	MBY710
Φ2.6×13	19.7	<25	82	1000	MBY800
Φ3.0×9.0	18.2	<25	78	1000	MBY800
Φ3.0×11	18.2	<25	95	1250	MBY800
Φ3.0×12	18.2	<25	100	1250	MBY800
Φ3.0×13	18.2	<25	108	1400	MBY900
Φ3.2×11	17.8	<25	110	1400	MBY900
Φ3.2×13	17.8	<25	128	1600	MBY1000
Φ3.2×13	17.7	<25	128	1600	JS120-A
Φ3.2×14	17.8	<25	138	1800	MBY1000
Φ3.5×11	17.1	<25	160	1800	MBY1000
Φ3.5×13	17.3	<25	175	2000	MBY1000
Φ3.8×12	17	<25	175	2500	JS130-C
Φ3.8×13	17	<25	190	2500	MBY1100
Φ4.0×13	16.3	<26	200	2800	IS140-A
Φ4.2×11	15.8	<25	195	2800	JS140-A
Φ4.2x13	15.8	<25	230	3150	JS140-C
Φ4.2×14	15.6	<25	252	3550	JS150-B
Φ4.2×15	15.6	<25	270	4000	JS160-B

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
