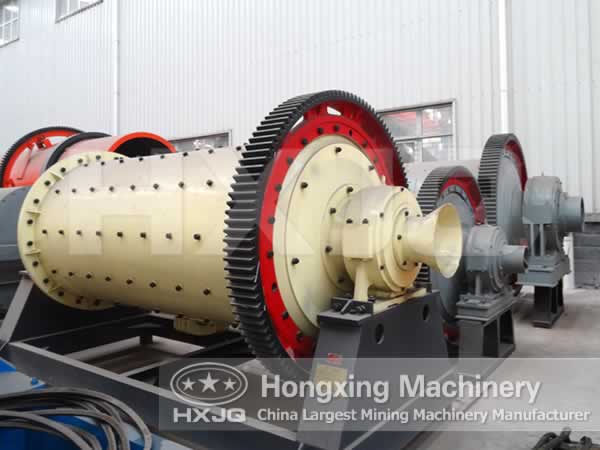

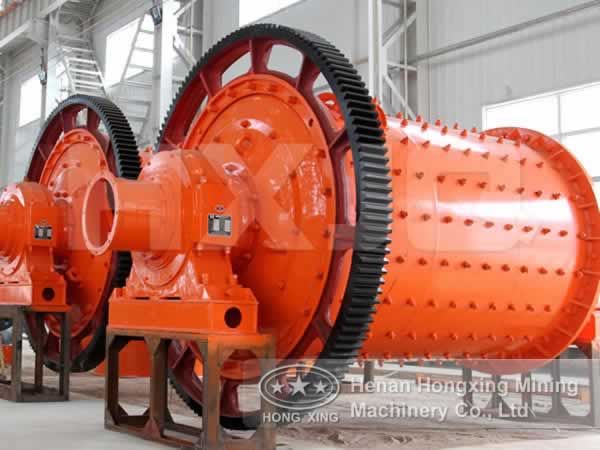

Rod Mill

Feeding granularity: ≤25-≤50mm

Production capacity: 0.62-180t/h

Applicable range: This machine can be widely applied in some fields such as refractory, chemical industry, metallurgy, glass and some other industries that have the higher requirement on the uniformity of the finished product.

Features

Introduction to Rod Mill

Rod mill is very similar to ball mill, except it use long rods for grinding media. The rods grind the ore by tumbling within the the mill, similar to the grinding balls in a ball mill. Our company adopts advanced controllable materials and international level technology, installs appropriate grinding rod depending on the actual materials, which change the traditional surface contact to line contact, making more even particle size and higher yield and higher yield. Therefore, they are widely used in refractory, chemical industry, metallurgy, glass and other industries, which are highly demanding on evenness degree for finished products. In recent years, they are also used in sand making industry for building materials.

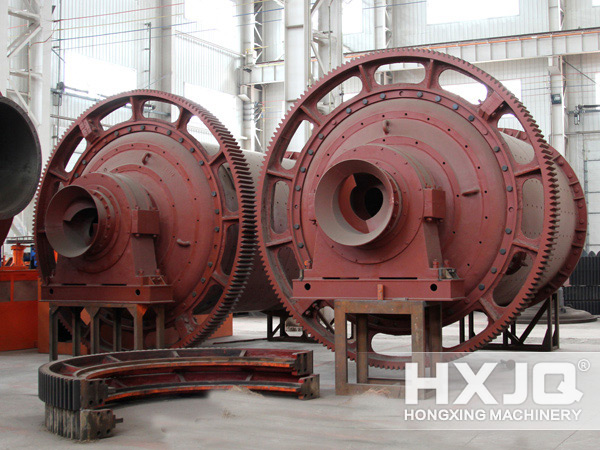

Rod Mill

Working Principle of Rod Grinder

The rod grinder drives the cylinder in rotation by the engine through the rotation of the reducer and big gears around with deceleration or through low speed synchronous motor driving directly peripheral big gears. The machine is equipped with appropriate grinding medium-steel bar, which is raised to a certain height under the centrifugal force and friction force and then cast down or discharged. The materials to be crushed are continuously added to the cylinder, shattered by the rotating grinding medium and discharged for the next procedure by the overflow and the power produced by continuously feeding in materials.

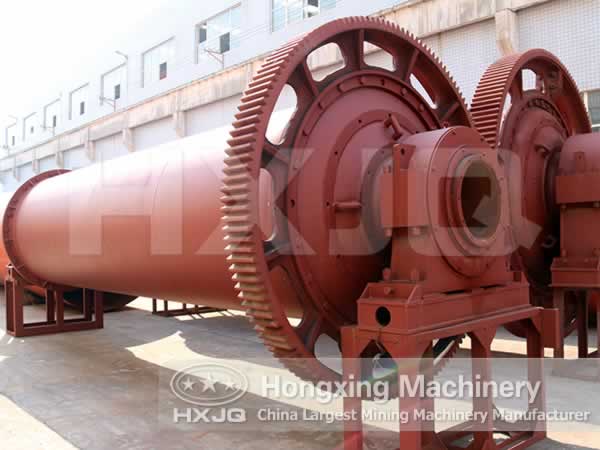

Rod Mill

Parameter of Rod Mill

Model	Cylinder		Effective Volume (m³)	Max.Rod Loading (t)	Speed (r/min)	Main Motor (KW)
Model	Diameter (mm)	Length (mm)	Effective Volume (m³)	Max.Rod Loading (t)	Speed (r/min)	Main Motor (KW)
MBS(Y)-1530	1500	3000	4.5	8	27	90
MBS(Y)-1532	1500	3200	4.8	8.5	27	90
MBS(Y)-1830	1830	3000	6.7	14	23.7	155
MBS(Y)-1832	1830	3200	7.2	15	23.7	155~180
MBS(Y)-2130	2100	3000	8.8	18	21.4	210
MBS(Y)-2132	2100	3200	9.6	20	21.4	210
MBS(Y)-2136	2100	3600	11	23	21.4	245
MBS(Y)-2230	2200	3000	10	21	19	245
MBS(Y)-2236	2200	3600	12	25	19	245
MBS(Y)-2430	2400	3000	12	25	19	280
MBS(Y)-2436	2400	3600	14	29	19	320
MBS(Y)-2730	2700	3000	15.5	32.5	18.4	355
MBS(Y)-2736	2700	3600	18	38	18.4	400
MBS(Y)-2740	2700	4000	20.6	43	18.4	480
MBS(Y)-3040	3000	4000	25.7	54	17	630
MBS(Y)-3230	3200	3000	21	44	16.4	500
MBS(Y)-3245	3200	4500	32	67	16.4	800
MBS(Y)-3642	3600	4200	38	79.5	15.8	1000
MBS(Y)-3645	3600	4500	40.8	85	15.8	1000~1250
MBS(Y)-3650	3600	5000	46	96	15.8	1250
MBS(Y)-3660	3600	6000	54	113	15.8	1400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
