Feeding Granularity: Φ1.5×15m-Φ3.3×40m
Production Capacity: 2-36t/h
Technical Features: Cooling the clinker (1000-1300℃) discharged from rotary kiln to below 200℃ and improving the quality and grindability of the clinker.
A cooling machine is regularly used for cooling fine chemical materials in building material production, metallurgic and chemical industries, cement production line, and compound fertilizer production line. It is applicable for cooling materials like slag, limestone, coal powder, clay, etc.

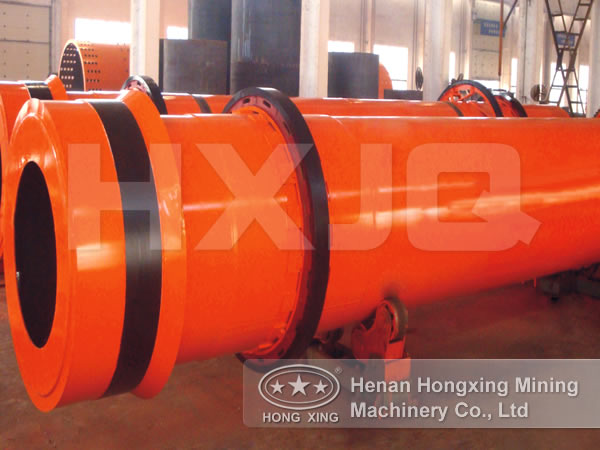

The equipment is mainly composed of cylinder, transmission device, sealing device, supporting wheels, water cooling equipment, etc. The masonry structure of refractory lining occupies about half of the cylinder, with the remaining fixed up with spreading boards. The clinker will be raised up for many times and then evenly spread and it exchanges heat with the cooling air. Especially in low temperature zone, the inclination angle and the speed can be adjusted by improving the structure and distribution of the spreading boards to increase the contact with air and control the movement speed, making the heat has plenty of time to conduct to the surface, resulting into the sufficient recycle of the heat from the low temperature clinker.
| Spec./m (Dia×Length） |
Capacity (t/h) |
Installation Obliquity (%) |
Main Reducer |
Main Motor (kw) |
Weight (t) |
| Φ1.5×15 | 2～3 | 3～5 | ZQ500 | 15 | 28 |
| Φ1.5×20 | 3～4 | 3～5 | ZQ500 | 15 | 35 |
| Φ1.8×18 | 4～6 | 3～5 | ZQ500 | 18.5 | 47 |
| Φ2.0×22 | 7～8.5 | 3～5 | ZQ500 | 22 | 61 |
| Φ2.2×18 | 7～8.5 | 3～5 | ZQ500 | 22 | 64 |
| Φ2.2×22 | 8～10 | 3～5 | ZQ650 | 30 | 73 |
| Φ2.4×24 | 12～15 | 3～5 | ZS125 | 45 | 98 |
| Φ2.5×25 | 15～20 | 3～5 | ZS125 | 55 | 110 |
| Φ2.8×28 | 16～22 | 3～5 | ZL100 | 55 | 130 |
| Φ3.0×30 | 20～25 | 3～5 | ZL115 | 75 | 169 |
| Φ3.2×36 | 28～32 | 3～5 | ZL115 | 90 | 200 |
| Φ3.3×40 | 32～36 | 3～5 | ZI130 | 132 | 237 |
| Φ3.6×36 | 35~38 | 3~5 | ZSY450-28 | 185 | 318 |
| Φ4.0×36 | 50~60 | 3~5 | ZSY450-25 | 220 | 348 |
| Φ4.0×45 | 60~70 | 3~5 | ZSY450-25 | 250 | 414 |
| Φ4.5×50 | 70~75 | 3~5 | ZSY500-25 | 315 | 576 |
